Product Summary
The MP2112DQ-LF-Z is a 1MHz constant frequency, current mode, PWM step-down converter. It integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that powered by a single cell Lithium-Ion (Li+) battery. The MP2112DQ-LF-Z can supply 1A of load current from a 2.5V to 6V input voltage. The output voltage can be regulated as low as 0.6V. It can also run at 100% duty cycle for low dropout applications. The MP2112DQ-LF-Z is available in space-saving 6-pin QFN and TSOT23-5 packages.
Parametrics
MP2112DQ-LF-Z absolute maximum ratings: (1)VIN to GND: –0.3V to +6.5V; (2)VSW to GND: –0.3V to VIN +0.3V; (3)VFB, VEN to GND: –0.3V to +6.5V; (4)Continuous Power Dissipation (TA = +25℃); QFN6 (3x3): 2.5W; TSOT23-5: 0.57W; (5)Junction Temperature: +150℃; (6)Lead Temperature: +260℃; (7)Storage Temperature: –65 to +150℃; (8)Recommended Operating Conditions: Supply Voltage VIN: 2.5V to 6V; Output Voltage VOUT: 0.6V to 6V; (9)Operating Junct. Temp (TJ): –40 to +125℃.
Features
MP2112DQ-LF-Z features: (1)1MHz Constant Switching Frequency; (2)1A Available Load Current; (3)2.5V to 6V Input Voltage Range; (4)Output Voltage as Low as 0.6V; (5)100% Duty Cycle in Dropout; (6)Current Mode Control; (7)Short Circuit Protection; (8)Thermal Fault Protection; (9)<0.1μA Shutdown Current; (10)Space Saving 3mm x 3mm QFN6 and TSOT23-5 Packages.

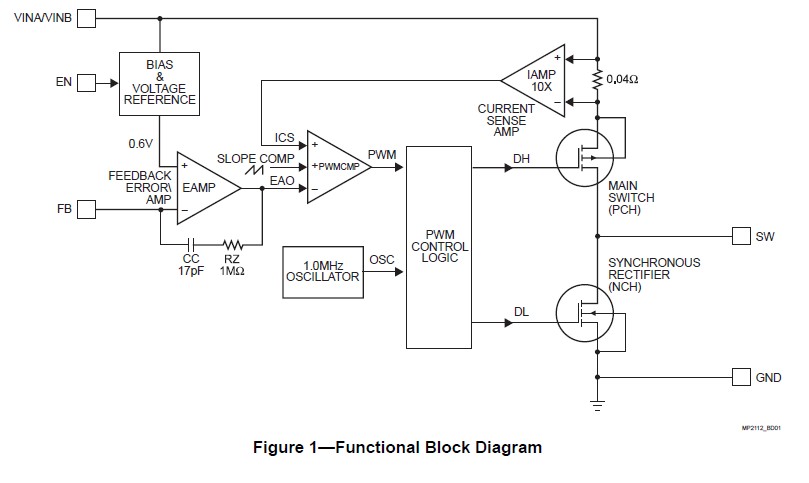

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MP2112DQ-LF-Z |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 1A, 6V, 1MHz Synchronous Buck |
Data Sheet |
|
|
||||||||||||
