Product Summary

The MP2565DN-LF-Z is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET. It provides 2.5A output with current mode control for fast loop response and easy compensation. The wide 4.5V to 50V input range accommodates a variety of step-down applications, including those in an automotive input environment. High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate driving losses. The frequency foldback helps prevent inductor current runaway during startup and thermal shutdown provides reliable, fault tolerant operation. By switching at 4MHz, the MP2565DN-LF-Z is able to prevent EMI (Electromagnetic Interference) noise problems, such as those found in AM radio and ADSL applications. The MP2565DN-LF-Z is available in small 3mm x 3mm QFN10 and thermally enhanced SOIC8 packages.

Parametrics

MP2565DN-LF-Z absolute maximum ratings: (1)Vin (Min) (V): 4.5; (2)Vin (Max) (V): 50; (3)lout (Max) (A): 2.5; (4)Isw Typ (A): 3.5; (5)Iq (Typ) (mA): 0.1; (6)Vfb (V): 0.8; (7)Freq 1 (kHz) :4000 (Adj.); (8)Freq 2 (kHz); (9)Package: QFN10, SOIC8E.

Features

MP2565DN-LF-Z features: (1)100μA Quiescent Current ; (2)Wide 4.5V to 50V Operating Input Range ; (3)2.5A Peak Switch Current ; (4)220mΩ Internal Power MOSFET ; (5)Up to 4MHz Programmable Switching Frequency ; (6)Stable with Ceramic Capacitor ; (7)Internal Soft-Start ; (8)Internally Set Current Limit without external Current Sensing Resistor ; (9)Up to 95% Efficiency ; (10)Output Adjustable from 0.8V to 47V ; (11)Available in 3x3mm QFN10 and Thermally Enhanced SOIC8 Packages.

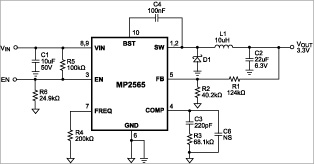

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MP2565DN-LF-Z
MP2565DN-LF-Z
Monolithic Power Systems (MPS)
Switching Converters, Regulators & Controllers 2.5A, 4MHz, 50V Step-Down Converter
Data Sheet
0-1750: $1.25
1750-2000: $1.20
2000-2500: $1.20
2500-5000: $1.17
